Roland SRV-2000
A Classic MIDI Digital Reverb
Clicking on Thumbnail will open larger view.
Status: New Old Stock
From February 1986, a Demo Stock Roland SRV-2000 MIDI Digital Reverb. This SRV-2000 has never been sold. It was occasionally and gently used for demo purposes in our on-site recording studio...
Accompanying images accurately describe the SRV-2000's appearance. I would rate it a conservative 8 out of 10. Quality digital processing, equally at home in your demo studio, PA System or guitar rack. Lots and lots of real useful effects...
About the Roland SRV-2000:
The SRV -2000 incorporates a 16-bit A/D/A converter which converts analog signals into digital signals. The core of the SRV -2000 is a 28-bit, parallel-operation signal processor which serves as the arithmetic-operation circuit. All analog circuits feature discrete construction to reproduce digital reverb sounds without loosing clarity or subtlety. The SRV -2000 offers an S/N ratio of 80 dB, a frequency response between 30 Hz and 10 kHz, a dynamic range of 90 dB, and a THD of 0.03%.
Its' flexible, versatile performance and excellent sound quality completely satisfy even the most demanding professional needs.

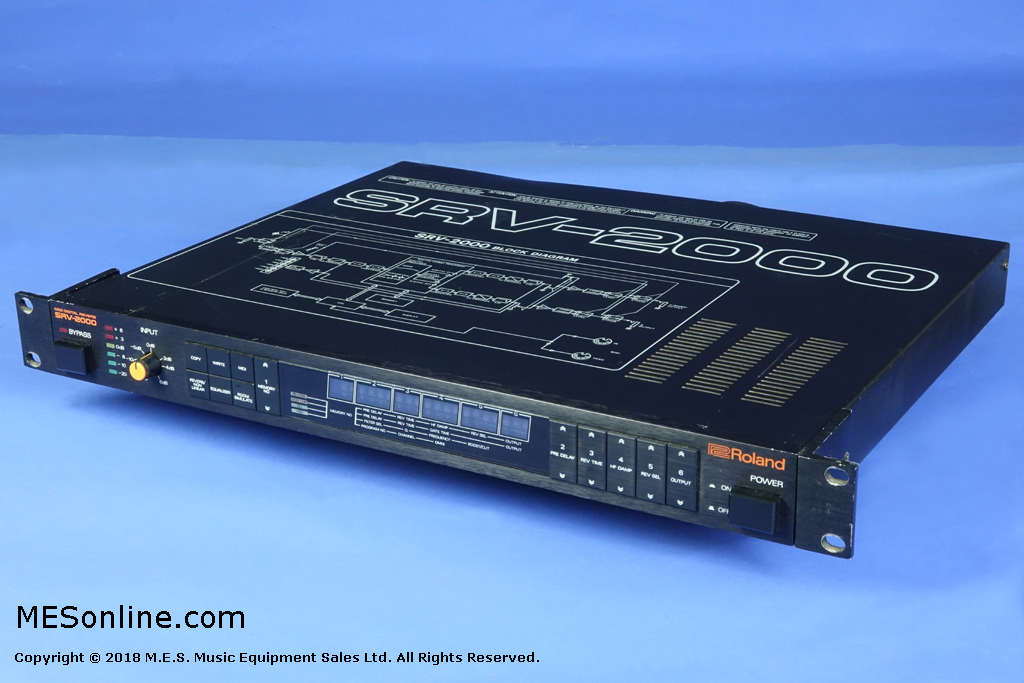

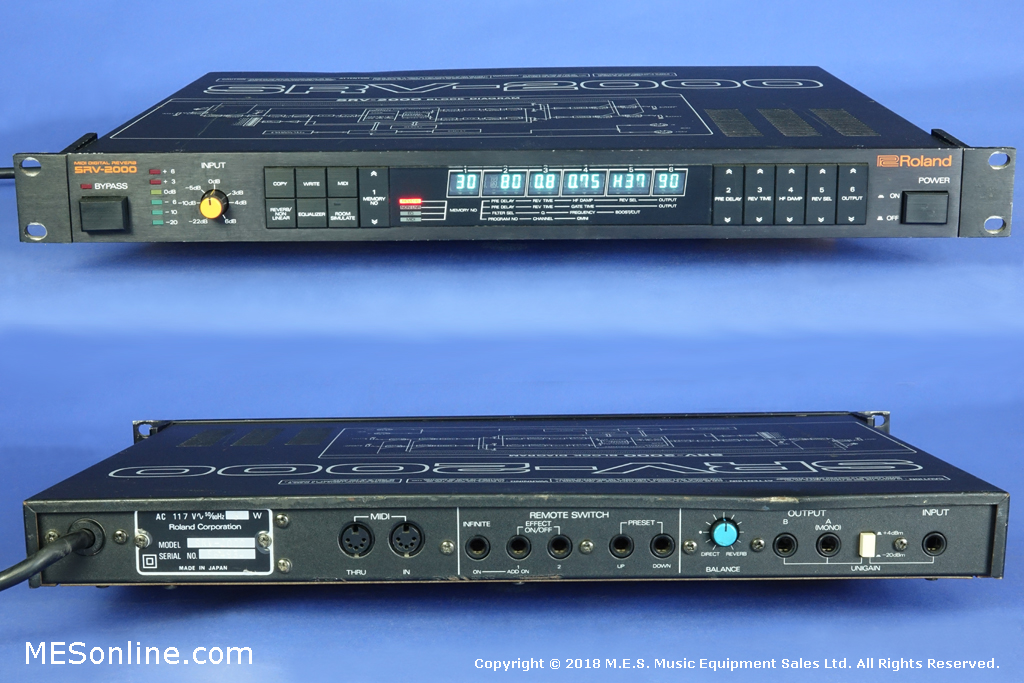

FRONT PANEL
* Input Attenuator: 1
* Controls:
Reverb Mode Pre-Delay Time, Reverb Time, HF Damp, Reverb Selection, Reverb Output Level: Up/Down,
Non-Linear Mode Pre-Delay Time, Reverb Time, Gate Time, Non-Linear Output Level: Up/Down,
Equalizer Mode Filter Select, Q Control, Frequency, Boost/Cut: Up/Down, Pre-Delay Time, Reverb Time, HF Damp, Reverb Selection, Reverb Output Level: Up/Down,
MIDI Mode MIDI Program Number, MIDI Channel: Up/Down, Omni: On/Off
* Switches: Copy, Write, MIDI , Reverb/Non-Linear, Equalizer, Room Simulate, Bypass

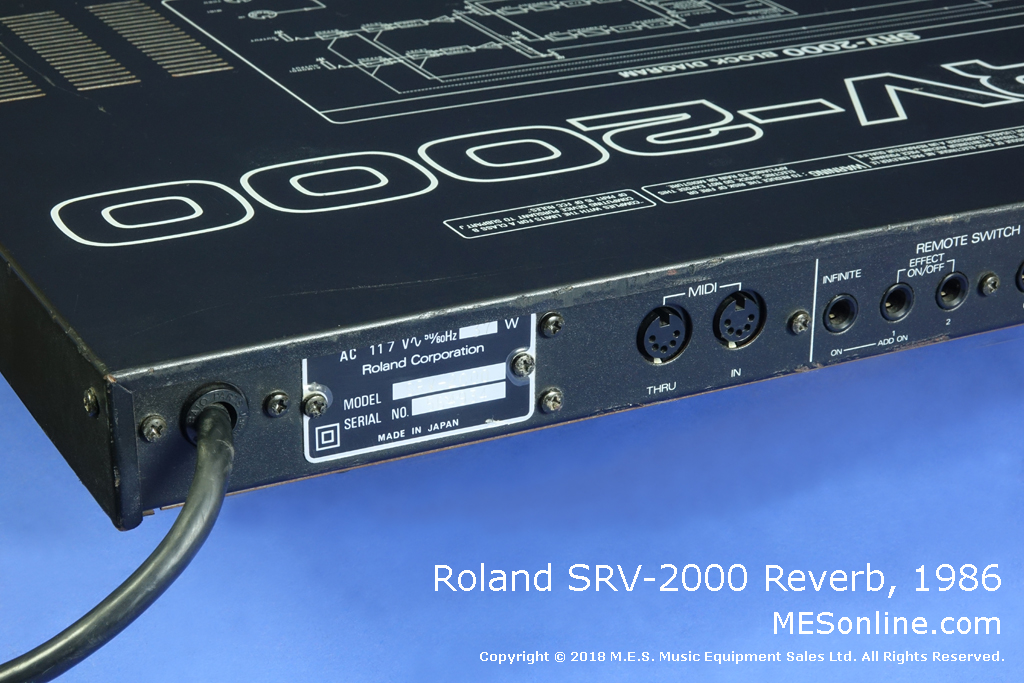

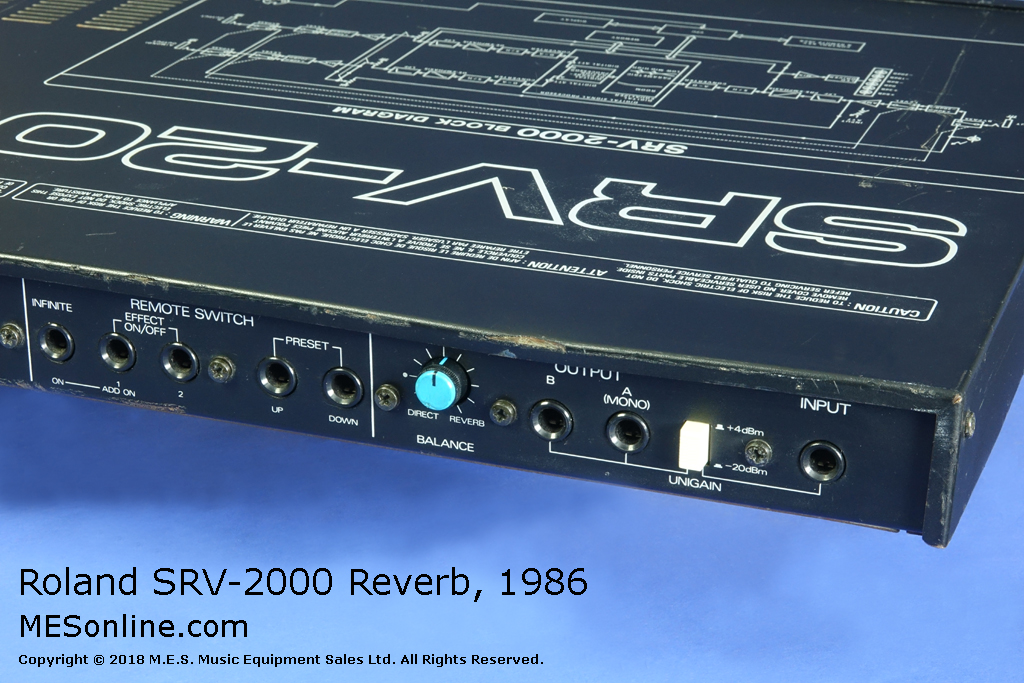

REAR PANEL
* Connection Jacks: Input, Output (A, B)
* Remote Control Jacks: Preset Shift Up, Preset Sift Down, Effect On/Off 1 (Add On), Effect On/Off 2, Infinite On/Of
* MIDI Connectors: In, Thru
* Control: Balance (Direct/Reverb)? Switch: Input/Output Level Select: (+4/-20 dBm)
OTHER
* Input Level/Impedance: +4 dBm/56 kOhm, -20 dBm/56 kOhm
* Stereo Output Level: +4 dBm (+18 dBm max), -20 dBm (-5 dBm max)
* Output Impedance: 100 Ohm (+4 dBm), 650 Ohm (-20 dBm)
* A/D/A Conversion System: 16-bit linear
* Memory Capacity: 48 kbytes
* Frequency Response: 10 Hz to 50 kHz +0(-1 dB (Direct), 30 Hz to 10 kHz +1/-2.5 dB (Reverb)
? S/N Radio at Rated Input/Output (IHF-A): 95 dB (Direct), 80 dB (Reverb)
* Dynamic Range : 105 dB (Direct), 90 dB (Reverb)
* THD at 1 kHz, Rated Input/Output: 0.01% or less (Direct), 0.03% or less (Reverb)
* Pre-Delay Time: 0.1 to 99 s (Reverb Mode), -0.9 to 99 s (NonLinear Mode), adjustable in 0.1 s steps from -0.9 to 9.9 s, and 1 s steps from 10 to 99 s
* High Frequency Damping Control: x 0.05 to x 1
* Reverberation Selection: Room (0.3,1.0, 7.0, 15, 22, 26, 32, 37), Plate (A, B)
* Equalizer Characteristics: Low Frequency Control (Cutoff Frequency: 40 Hz to 1 kHz, Boost/Cut: -24 to + 24 dB), Parametric (Middle Frequency: 250 Hz to 9.99 kHz, High Frequency: 800 Hz to 9.99 kHz, Q: 0.2 to 9; adjustable in 0.1 steps, Boost/Cut: -24 to + 12 dB)
PHYSICAL
* 482 (W) x 362 (D) x 47 (H) mm (19" x 14-1/4" x 1-7/8"), 19" rack-mountable (EIA-1U)
* Weight: 5.2 kg (11 lb. 7 oz.)
